Welcome to Ihle Fabrications

We are a family owned agriculture and fabrication business located in Central Iowa. We sell vertical unload auger liner kits for Case IH combines, bubble up, clean grain & return liners for Case IH/New Holland, and bubble up auger liners for John Deere. All of our products are engineered and fabricated on our farm.

IHLE FABRICATIONS LLC PRODUCTS

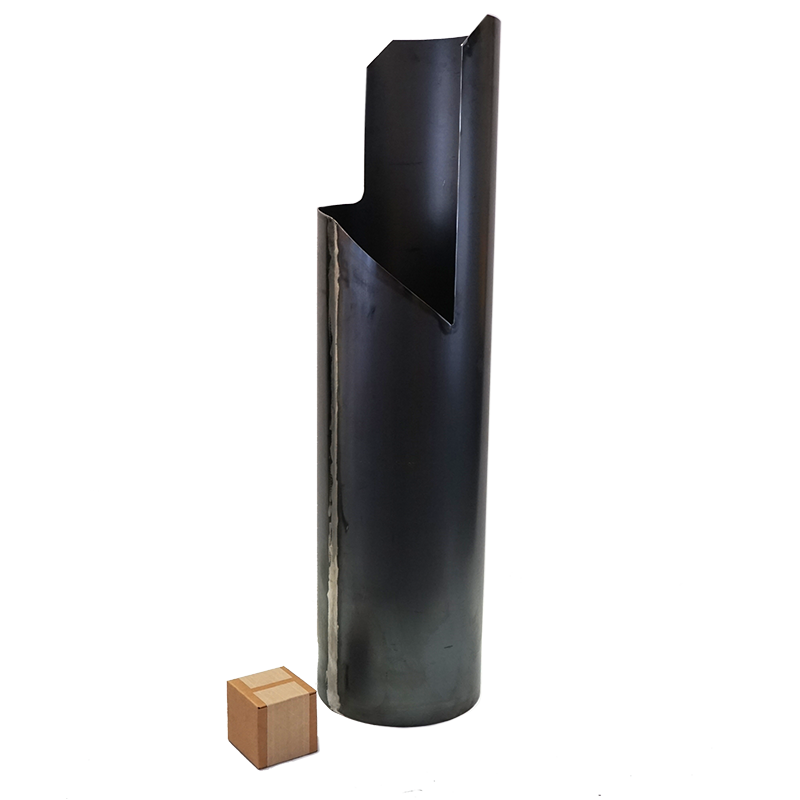

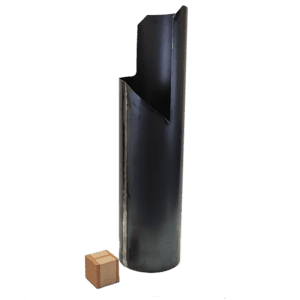

Auger Tube Liner for Case IH Combines

Do you want to protect/prolong the life or restore your vertical unload auger tube? Do this easily with our prefit tube. This auger

tube lines your existing tube before it wears thin and you have to replace your grain tank. Replacing your grain tank is costly. This can be done for a fraction of the cost.
Cost: $670, plus shipping
Kit includes: Vertical liner, top repair ring, and a 4-piece grain tank weldment sump kit

This liner fits the following CASE IH Combines:
Mid Range Combines
5088, 6088, 7088, 5130, 6130, 7130, 5140, 6140, 7140
Flagship Combines
7010, 8010, 9010, 7120, 8120, 9120
New Holland
CR900, CR9000, CR8000, CR7000, CX8000, CR6.90, CR7.90, CR8.90
This liner will not fit combines with
the new cast unload elbow

Upper/Lower Bubble-Up Auger Liner for New Holland Combines

This is a simple solution to protect/prolong the life of your bubble up auger or restore your worn out tubes in your New Holland combine. These two products consist of an upper and lower liner made out of a 12 gauge steel and is pre-rolled, pre-cut, and pre-fit for easy installation. Hardware included to bolt in or may be welded.
Cost (Lower Liner): $350, retail
Cost (Upper Liner): $250, retail

This liner fits the following New Holland Combines:
CR920, CR940, CR960, CR970, CR9070, CR9080, CR9065, CR9060, CR9040, CR9090, CR8090, CR6090, CR8080, CR7090, CX8070, CX8080, CX8090, CR6.90,
CR7.90, CR8.90

**May fit other models

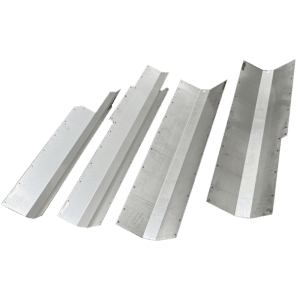

Clean Grain & Return Liner for New Holland Combines (Left)

This is a simple solution to protect/prolong the life of your clean & return grain cross auger trough of your New Holland combine. Our kit consists of 3 weld in stainless steel liners that are pre-rolled, pre-cut, and pre-fit for easy installation.
Cost: $350, retail

This liner fits the following New Holland Combines:
CR920, CR940, CR9040, CR6090,
CR960, CR9060, CR9065, CR7090,
CR970, CR9070, CR8090, CR9090

​

​

Clean Grain & Return Liner for Case IH Combines (Right)

This is a simple solution to protect/prolong the life of your clean & return grain cross auger trough of your New Holland combine. Our kit consists of 2 weld-in stainless steel liners that are pre-rolled, pre-cut, and pre-fit for easy installation. Cost: $300, retail

This liner fits the following Case IH Combines: Flagship Combines: 7010, 8010, 9010, 7120, 8120, 9120, 7230, 8230, 9230

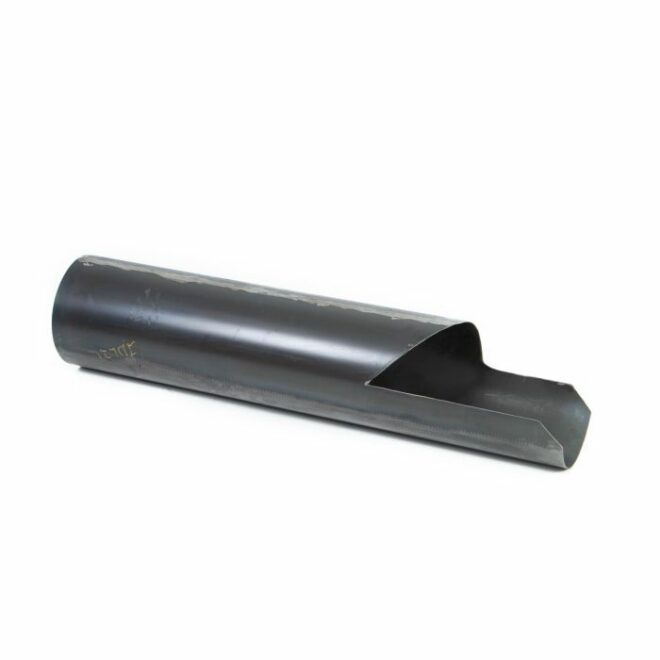

Bubble-Up Auger Tube Liner for Case IH Combines

Left: Midrange Right: Flagship

This is a simple solution to protect/prolong the life of your bubble up auger or restore your worn out tubes in your Case IH combine. Our auger tube liner is made out of 12 gauge steel and is pre-rolled, pre-cut, and pre-fit for easy installation. Hardware included to bolt in or may be welded.

Cost: $620, plus shipping

This liner fits the following Case IH Combines:

Mid Range Combines:

5088, 5130, 5140, 6088, 6130, 6140, 7088, 7130, 7140

Flagship Combines:

7010, 8010, 9010, 7120, 8120, 9120, 7230, 8230, 9230, 7240, 8240, 9240

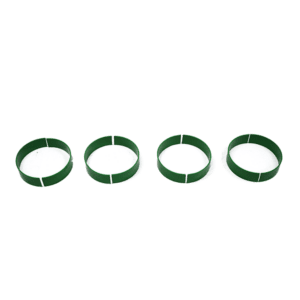

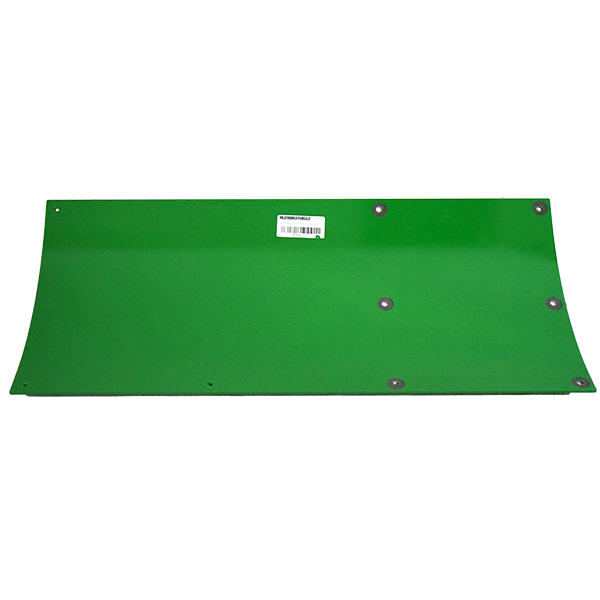

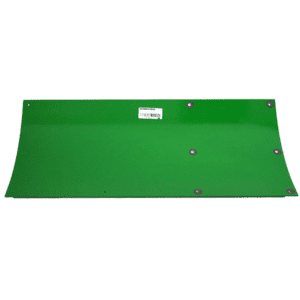

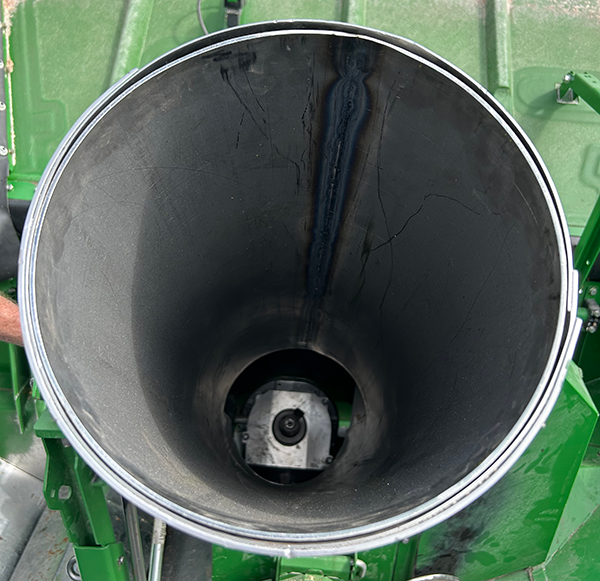

John Deere Bubble-Up Auger Liners

​

Cost: $250.00

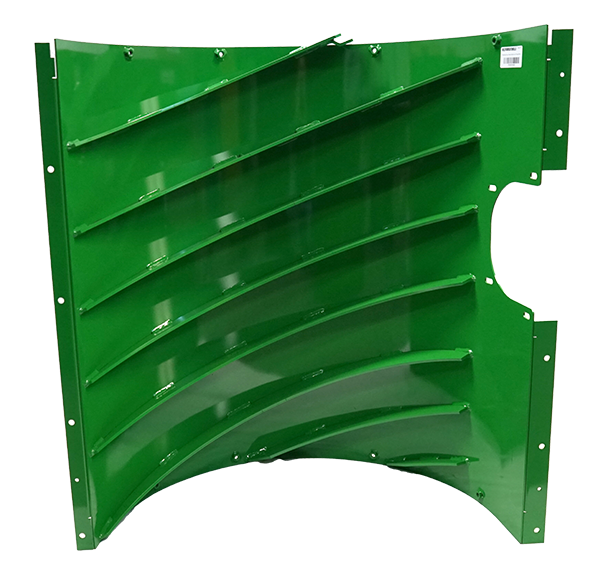

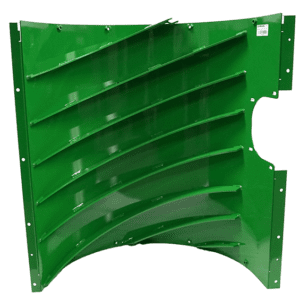

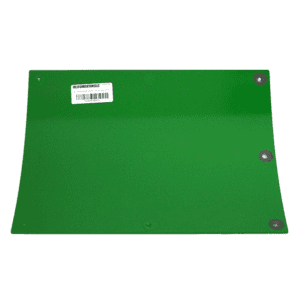

CASE IH Grain Bed Auger Liners

Extended wear with or without hard surface

Cost: Call or email for pricing

1400-2300 Series

Cost: 4 piece $625.00 / 5 piece $695.00
